Chapter 12 Internet Communication and Controls
Introducing
The Internet
ที่สำคัญของส่วนนี้มีแค่อุปกรณ์ Embed ก็ใช้ Internet ได้นะ เรียกว่า IOT (Internet of things)
The Ethernet
ใช้มาตรฐาน IEEE 802.3 ที่มีความเร็บยสูงสุดได้ถึง 100Gbps (ได้แค่ในจินตนาการแหละ) เป็น Protocol แบบ Serial โดยจะเชื่อมต่อกับ Network ที่แบ่งเป็น 2 แบบคือ
- LAN ระยะใกล้ๆเช่นในตึก อาจจะไม่มีเน็ตก็ได้
- WAN ระยะไกลขึ้น แน่นอนมีเน็ต
ใช้สายต่อ 4 เส้น โดยเป็นสัญญาณแบบ Differential เพื่อลดสัญญาณรบกวนประกอบด้วย TX+,TX- และ RX+,RX-

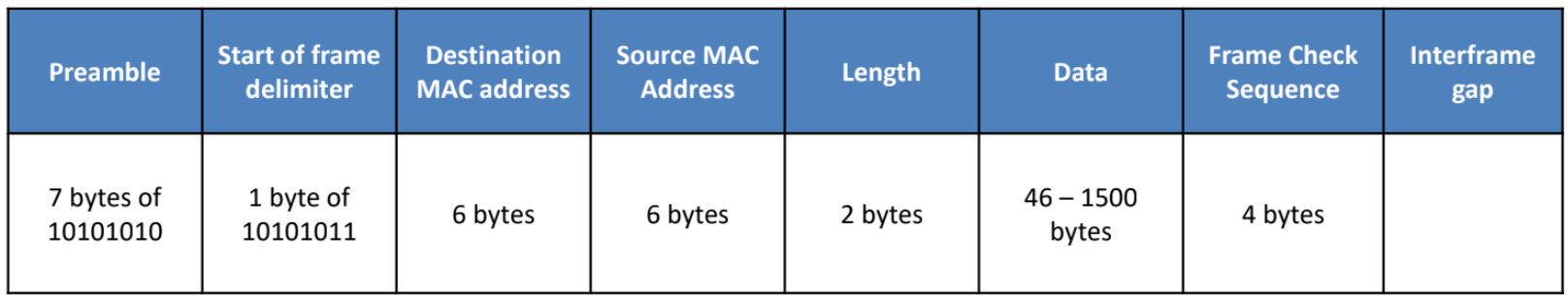

Ethernet ส่งข้อมูลเป็น Frame โดยสามารถส่งข้อมูลได้เร็วและใหญ่ แต่ละ Frame จะประกอบด้วย MAC Address ของต้นทางและปลายทาง
ผมไม่จำครับ
Ethernet ส่งข้อมูลโดย Encode แบบ Manchester ก็คือ High->Low นับเป็น 0, Low->High นับเป็น 1 แต่ไม่รู้มันดูยังไงแต่มันใช้ Sync Clock ของข้อมูลตอนส่งได้ด้วย
Ethernet on mbed
/* Program Example 12.7: Ethernet write - sends two data bytes every 200 ms
from an mbed’s Ethernet port. The two byte values are arbitrarily chosen as
0xB9 and 0x46.
*/
#include "mbed.h"
#include "Ethernet.h"
Ethernet eth; // The Ethernet object
char data[]={0xB9,0x46}; // Define the data values
int main() {
while (1) {
eth.write(data,0x02); // Write the package
eth.send(); // Send the package
wait(0.2); // wait 200 ms
}
}
/* Program Example 12.8: Ethernet read - allows an mbed to read Ethernet data traffic
and display the captured data to the screen
*/
#include "mbed.h"
Ethernet eth; // Ethernet object
Serial pc(USBTX, USBRX); // tx, rx for host terminal coms
char buf[0xFF]; // create a large buffer to store data
int main() {
pc.printf("Ethernet data read and display\n\r");
while (1) {
int size = eth.receive(); // get size of incoming data packet
if (size > 0) { // if packet received
eth.read(buf, size); // read packet to data buffer
pc.printf("size = %d data = ",size); // print to screen
for (int i=0;i<size;i++) { // loop for each data byte
pc.printf("%02X ",buf[i]); // print data to screen, %X hexadecimal
}
pc.printf("\n\r");
}
}
}

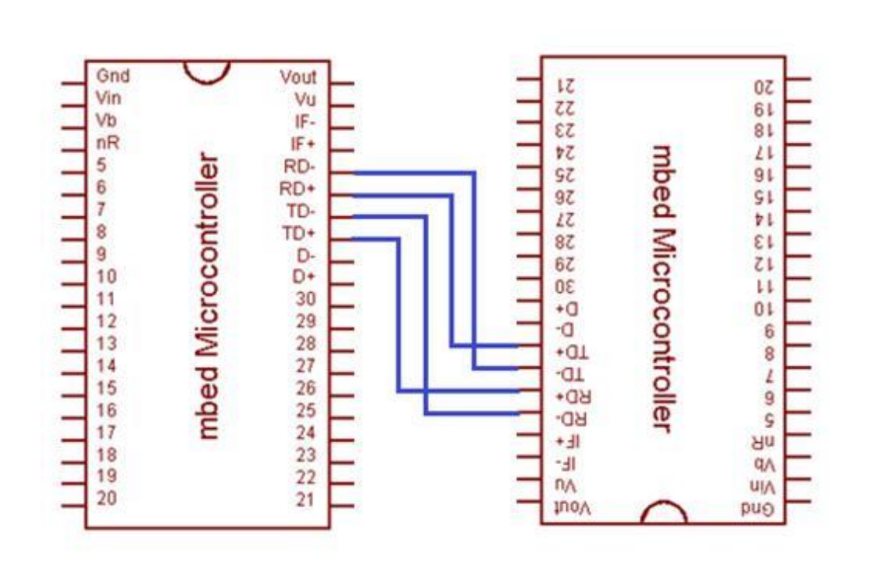

อันบนโค้ดส่งข้อมูล อันล่างโค้ดรับข้อมูล ส่วนรูปแสดงการต่อสาย จบ

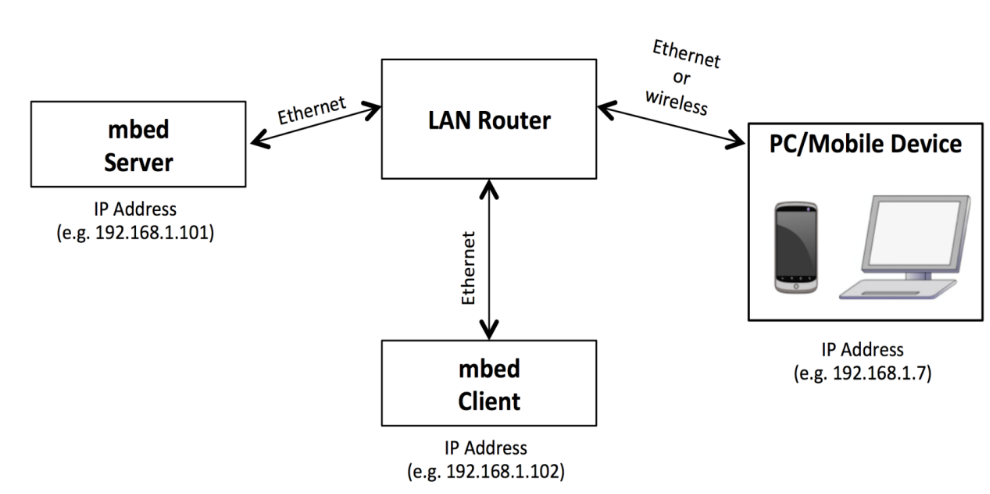

LAN on MBED
ขี้เกียจละบทนี้
